Mechanical Department

End-to-end execution of static equipment for petrochemical, refinery, and oil & gas projects

Department Overview

The Mechanical Department is responsible for the end-to-end execution of static equipment for petrochemical, refinery, and oil & gas projects — covering design, engineering, fabrication, inspection, and testing — in full compliance with international codes and standards (ASME, API, TEMA, etc.).

The scope spans from initial data receipt to final delivery, commissioning support, and as-built documentation.

Scope of Work

1

Input Data Review & Specification Development

  • Review Process Data Sheets (PDS), PFDs, P&IDs, and client specifications
  • Develop or update Mechanical Design & Fabrication Specifications
    Design Code & Edition (ASME BPVC Sec. VIII Div.1/2)
    Design Conditions (MAWP, MAWV, Design Temp)
    Material Specifications (ASME SA Grades)
  • Prepare Equipment List and Mechanical Datasheets for all static equipment
2

Equipment Classification & Type Identification

Identify and categorize static equipment types including:

Pressure Vessels (Horizontal / Vertical)
Columns & Towers (Distillation, Absorption)
Shell & Tube Heat Exchangers (TEMA R/C/B)
Air Coolers (API 661)
Storage Tanks (API 650 Atmospheric)
Separators, Knock-out Drums, Filters
3

Mechanical Design & Calculations

Perform detailed mechanical design and code-compliant calculations:

Pressure Vessels & Towers:

  • Shell & Head Thickness (UG-27, UG-32)
  • Nozzle Reinforcement (UG-36 to UG-45)
  • Flange Rating (ASME B16.5/47)

Heat Exchangers:

  • Shell/Channel Thickness, Tube Sheet
  • Baffle Design, Nozzle Loads
  • Expansion Joint Requirement

Software Used: PV Elite, TANK, COMPRESS, Mathcad, Auto PIPE Vessel

Our Engineering Process

Design Phase

Conceptual Design & Analysis

Initial design phase showing conceptual development and preliminary analysis

Fabrication

Fabrication & Assembly

Advanced fabrication techniques and assembly processes

Standards & Codes Applied

ASME Standards

  • BPVC Section VIII Div. 1 & 2
  • Section IX — Welding
  • B16.5 / B16.47 — Flanges

API Standards

  • API 650 / 620 / 653
  • API 661 — Air Coolers

Other Standards

  • TEMA — Heat Exchangers
  • NACE MR0175 / ISO 15156
  • ASNT SNT-TC-1A / ISO 9712

Deliverables Summary

DELIVERABLE DESCRIPTION
Mechanical Design & Fabrication SpecificationOverall requirements for design and build
Equipment DatasheetMechanical design data per tag
Calculation BookDetailed code calculations
GA & Detail Drawings Workshop-ready fabrication drawings
MTOMaterial procurement list

Project Gallery

Pressure Vessel

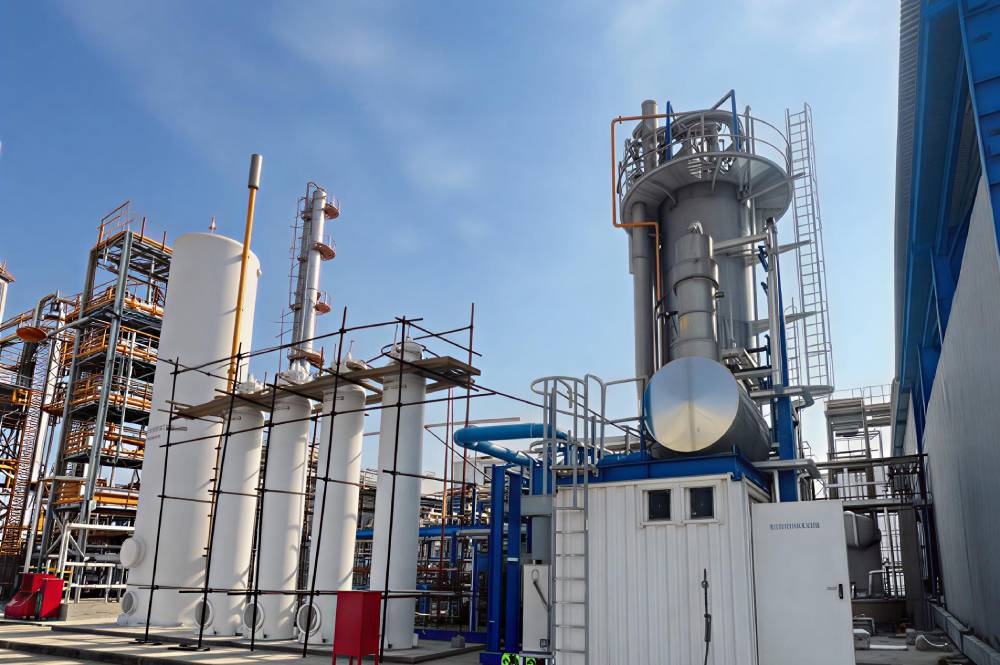

Pressure Vessels

Custom-designed pressure vessels for industrial applications with full ASME compliance

Heat Exchanger

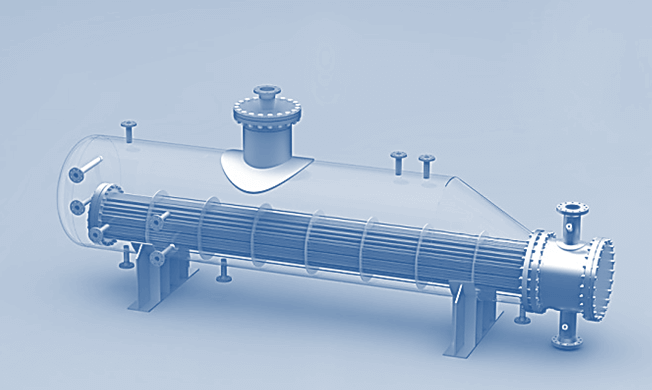

Heat Exchangers

Efficient heat transfer solutions designed to TEMA standards for process industries

Storage Tank

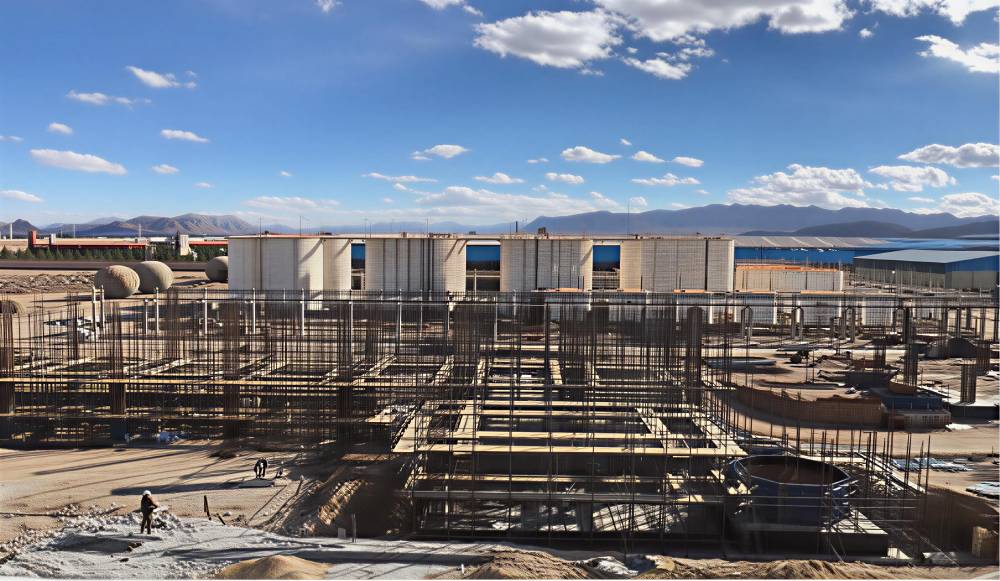

Storage Tanks

Large-capacity storage solutions with advanced safety features and API 650 compliance

Need Mechanical Engineering Expertise?

Our certified mechanical engineers are ready to handle your most complex projects with precision and expertise
